(5) XLPE COAXIAL SERIES |
XLPE COAXIAL CABLE (UL1354, 1365)
PRODUCT DESCRIPTION:
- STRANDED OR SOLID COPPER OR TINNED COPPER.
- USE CROSSLINK POLYETHYLENE (XLPE), EXCELLENT FOR TIN SOLDERING UP TO 250℃, NO SHRINKING .
- LOWEST SIGNAL LOSS, EXCELLENT IMPEDANCE MATCHING.
- RATE TEMPERATURE 60℃ OR 80℃.
- UL STYLE 1354, 1365
APPLICATIONS:
- FOR INTERNAL WIRING RADIO, RECEIVERS, ANTENNA, SATELLITE AND OTHER ELECTRONIC EQUIPMENT.
|

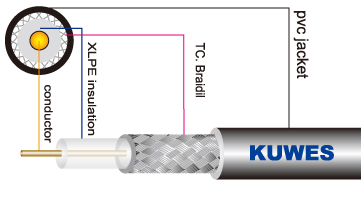

CONSTRUCTION:
|
|
TYPE |
CONDUCTOR |
INSULATION |
BRAID SHIELD |
JACKET |
NOM.
CAPA.
PF/M |
NOM.
IMPED.
(£[) |
VP
(%) |
ATTENUATION |
|
(AWG)
NO./MM |
MTRL |
MTRL |
(DIA)
MM |
MTRL |
AWG/
COVERAGE(%) |
MTRL |
OVERALL
DIA. |
(MHZ) |
DB
100FT |
|
RG-174/U |
26(7/0.16) |
CW |
XLPE |
1.52 |
TC |
38(95)% |
PVC |
2.8 |
101 |
50 |
66 |
1000 |
34 |
|
RG-174/U |
26(7/0.16) |
C |
XLPE |
1.52 |
TC |
38(95)% |
PVC |
2.8 |
101 |
50 |
66 |
1000 |
34 |
|
1.5D-2V |
24(7/0.18) |
C |
XLPE |
1.6 |
C |
36(95)% |
PVC |
2.9 |
104 |
50 |
66 |
200 |
12 |
|
1.5C-2V |
30(1/0.26) |
CW |
XLPE |
1.6 |
C |
36(95)% |
PVC |
2.9 |
69 |
75 |
66 |
200 |
12 |
|
2.5C-2V |
26(1/0.4) |
C |
XLPE |
2.4 |
C |
36(95)% |
PVC |
4.0 |
69 |
75 |
66 |
200 |
8 |
|
| KS-8030 XLPE COAXIAL CABLE |
|
EXCELLENT FOR TIN SOLDERING UP TO 250DEG.,
NO SHRINKING
TYPE 1 : RG-174/U
TYPE 2 : 1.5C-2V
TYPE 3 : 2.5C-2V
TYPE 4 : 1.5D-2V |
| 50 & 75 OHM |
|
|
|
|
|
