RUBBER / WELDING / BATTERY / AUTO / CAR / TRAILER WIRE & CABLE
(1)RUBBER WELDING & BATTERY WIRE SERIES

RUBBER / WELDING / BATTERY / AUTO / CAR/TRAILER WIRE & CABLE

(1) RUBBER WELDING & BATTERY WIRESERIES

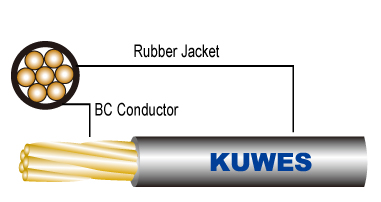

RUBBER WELDING CABLE

SPEC：

BAER COPPER CONDUCTORS
RUBBER / P.TPR. /
NEOPENE / SILICON
INSULATION JACKET

VDE0250 STANDARD
CONDUCTOR		INSULATION	JACKET
AREA	NO.MM	THICKNESS	OVERALL DIA.
16MM²	513/0.20	2.0MM	11.5MM
25MM²	783/0.20	2.1MM	12.0MM
35MM²	1107/0.20	2.2MM	13.5MM
50MM²	1554/0.20	2.3MM	15.0MM
70MM²	2196/0.20	2.5MM	17.5MM
95MM²	2940/0.20	2.6MM	19.5MM
120MM²	3811/0.20	4.1MM	21.5MM

AWG TYPE
CONDUCTOR		JACKET
AREA	STRANDS NO.	OVERALL DIA.
AWG 8	168	0.36"
AWG 6	266	0.39"
AWG 4	420	0.45"
AWG 3	532	0.48"
AWG 2	665	0.55"
AWG 1	836	0.60"
AWG 1/0	1064	0.66"
AWG 2/0	1323	0.73"
AWG 3/0	1666	0.80"
AWG 4/0	2107	0.87"

BATTERY WIRE SERIES

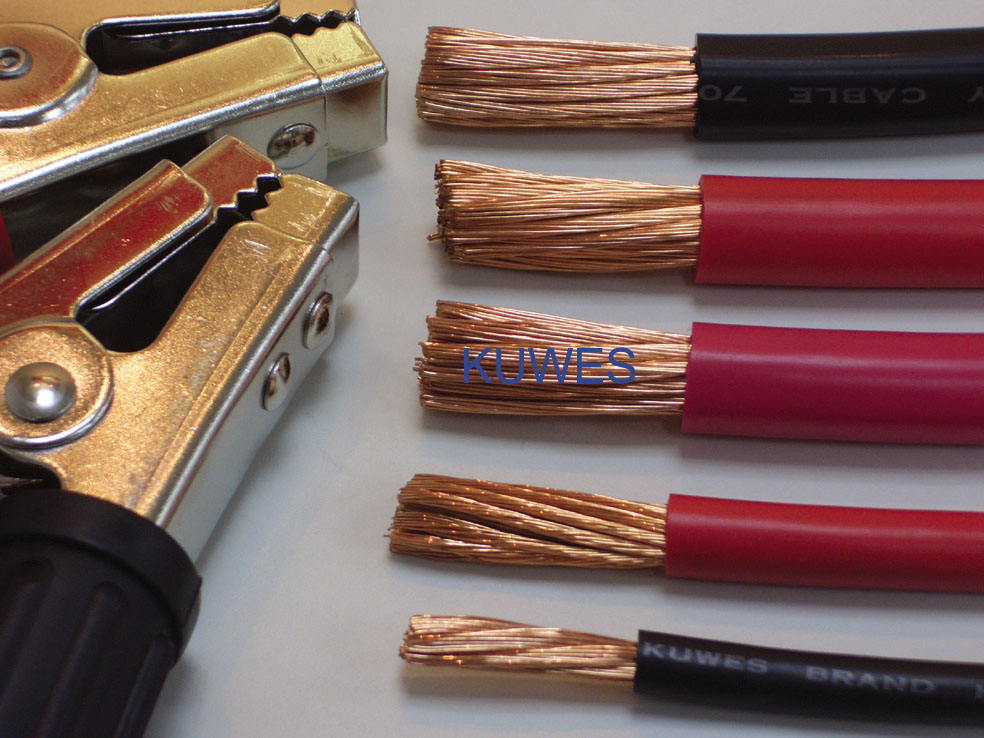

BATTER CABLE WITH CLIPS

AUTOMOTIVE EMERGENCY CABLES

JUMPER CABLES

TYPICAL APPLICAION：

THE BATTERY CABLE WITH CLIPS IS ESPECIALLY SUITED FOR ELECTRIC CONNECTION BETWEEN BATTERIES.
IT SERVES AS AN EMERGENCY CABLE (JUMER CABLE) IN CASE OF BATTERY FAILURE IN A VEHICLE.
APPLICABLE FOR 12V AND 24V GASOLINE AND DIESEL ENGINES.
SUITABLE FOR LIGHT LOAD VEHICLES UNDER 3.5 TONS.

TYPE	AREA MM²	LENGTH ± 50MM	GASOLINE ENGINE	DIESEL OIL ENGINE
TYPE	AREA MM²	LENGTH ± 50MM	DM³MAX
16	16	3000	2.5	-
25	25	3500	5.5	3
35	35	4500	7	4

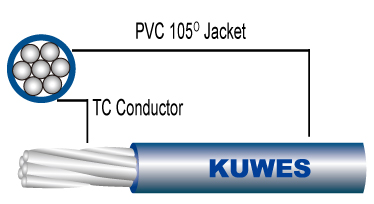

UL105deg. 0.6-1kv(AS 5000. Part1. Table) PVC SINGLE CORE CABLE
KS-9016:0.5MM2:16/0.20TC+O.D.2.3MM KS-9017:0.75MM2:24/0.20TC+O.D.2.5MM KS-9018:1.0MM2:32/0.20TC+O.D.2.8MM KS-9019:1.5MM2:50/0.25TC+O.D.3.7MM KS-9020:2.5MM2:50/0.25TC+O.D.3.7MM KS-9021:6.0MM2:84/0.30TC+O.D.5.2MM COLOR:RED/ORANGE/YELLOW/GREEN/BLUE/PINK/WHITE/BROWN/BLACK
AUSTRALIA STANDARD

KS-8888 RUBBER WELDING CABLE
SIZE:25MM/35MM/50MM/70MM/95MM/120MM COLOR: BLACK/ORANGE
FOR ARABIA/AFRICA MARKETS

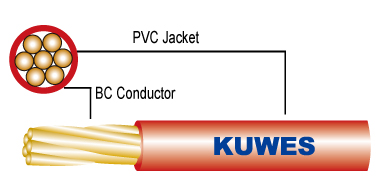

KS-9026 PVC BATTERY CABLE
SIZE: 10MM2/16MM2/25MM2/35MM2/50MM2/ 70MM2/95MM2 COLOR: RED/BLACK
EXTRA HEAVY DUTY
