TEFLON,SILICONE, CONTROL, EQUIPMENT, MEDICAL WIRE & CABLE
(2) TEFLON HOOK UP, SINGLE CORE, AUTO SERIES |
TEFLON FEP HIGH TEMPERATURE WIRE
CONDUCTOR : STRANDED OR SOLID TINNED COPPER / SILVER-COATED COPPER
|
ITEM |
TEMP. & VOLT |
SIZE |
INSULATION
THICKNESS |
JACKET |
|
UL1330 |
200℃ 600V |
28AWG ~ 14AWG |
0.51MM |
FEP |
|
UL1331 |
150℃ 600V |
28AWG ~ 14AWG |
0.51MM |
FEP |
|
UL1332 |
200℃ 300V |
28AWG ~ 14AWG |
0.33MM |
FEP |
|
UL1333 |
150℃ 300V |
28AWG ~ 14AWG |
0.33MM |
FEP |
TEFLON SINGLE / TRIPLE INSULATED WIRE
CONDUCTOR : STRANDED OR SOLID TINNED COPPER
|
ITEM |
TEMP. & VOLT |
SIZE |
INSULATION
THICKNESS |
JACKET |
|
UL 10109 |
200℃ 600V |
28AWG ~ 14AWG |
0.13MM X SINGLE |
FEP |
|
UL 1950
UL 10314
UL 10315
UL 10316 |
125℃ 300V
125℃ 600V |
34AWG ~ 18AWG |
0.10MM
0.13MM
0.20MM |
ETFE X TRIPLE |
|
UL 1709 |
260℃ 300V |
28AWG ~ 18AWG |
0.36MM
|
PFA |
|
UL 1710 |
260℃ 600V |
26AWG ~ 18AWG |
0.56MM |
PFA |
|

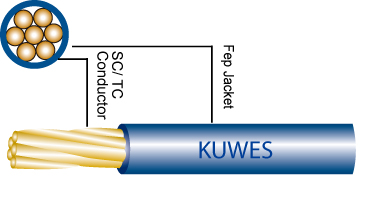

| KS-0811 UL1330/UL1332 FEP SINGLE CORE |
TEFLON FEP HOOK UP WIRE
UL1330: 200℃ 600V 28AWG ~ 14AWG
UL1330: 200℃ 300V 28AWG ~ 14AWG |
| HEAVY DUTY |
|
|
|
|
|
