COMPUTER / NETWORKING / TELEPHONE & COMMUNICATION CABLE
(3) CAT.3, TELEPHONE, COMPOSITE CABLE SERIES |
FLAT TELEPHONE CABLE
 |
SPECIFICATION:
◆ STRANDED BC/TC/TINSEL COND.
◆PVC JACKET
◆UL TYPE 20251
◆ RATED TEMPERATURE 60℃
◆ RATED VOLTAGE : 150 VOLTS
|
| ITEM |
CONDUCTOR |
NO.OF CORE |
INSULATION/MM |
JACKET |
|
1F |
28AWG 7/0.127MM |
2 |
0.18 THICKNESS |
2.5MMX4.0MM |
|
2F |
28AWG 7/0.127MM |
4 |
0.18 THICKNESS |
2.5MMX5.0MM |
|
3F |
28AWG 7/0.127MM |
6 |
0.18 THICKNESS |
2.5MMX7.0MM |
|
4F |
28AWG 7/0.127MM |
8 |
0.18 THICKNESS |
2.5MMX9.0MM |
|
5F |
28AWG 7/0.127MM |
10 |
0.18 THICKNESS |
2.5MMX11.0MM |

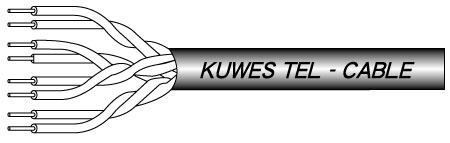

ROUND TYPE SOLID TELEPHONE CABLE
 |
SPECIFICATION:
◆SOLID BC/TC CONDUCTOR
◆22/24/26/28 AWG TWISTED / NON-TWISTED
◆PVC JACKET
◆CAT.3 / CAT.2 STANDARD
|
| |
|
| ITEM |
CONDUCTOR |
NO. CORES/PAIRS |
INSULATION/I.D. |
|
22AWG |
1/0.65MM |
2C ~ 200C, 1P ~ 100P |
1.15MM |
|
24AWG |
1/0.50MM |
2C ~ 200C, 1P ~ 100P |
1.15MM |
|
26AWG |
1/0.40MM |
2C ~ 200C, 1P ~ 100P |
1.15MM |
|
28AWG |
1/0.32MM |
2C ~ 200C, 1P ~ 100P |
1.15MM |
|
|
|
